Tooling Spindles

Designed for flexibility, the integrated motors can be adjusted or replaced according to your machining needs. Engineered for reliable performance across industries like aerospace and automotive, these spindles offer a durable, low-maintenance design—making them a smart, sustainable, and cost-effective solution for demanding production environments.

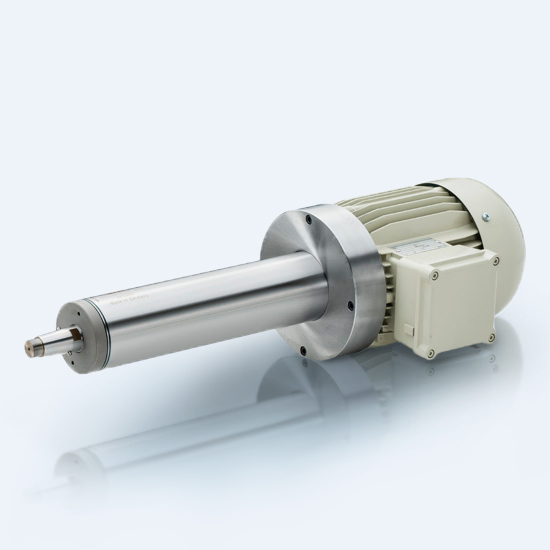

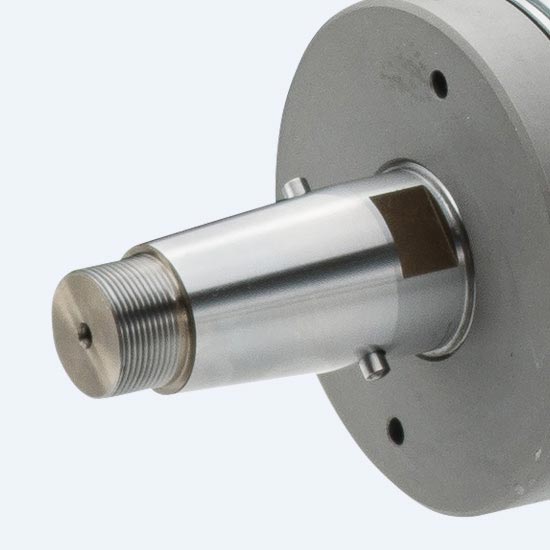

TSEV Series

Tool spindles with attached air-cooled motors and external Taper. Permanent grease lubrication and air-cooled motors make these spindles a great solution for simple grinding machines.

  • Tool Change: Manual or Automatic

  • Sleeve diameter: 50-160 mm

  • Speed: max. 24,000 rpm

  • Power: max. 11 kW (S1)

  • Torque: max. Nm (S1)

  • Motor: Asynchronous

  • Tool Interface: GMN external taper

  • Lubrication: Permanent Grease

Request a Quote

TSEV Series

Tool spindles with attached air-cooled motors and external Taper. Permanent grease lubrication and air-cooled motors make these spindles a great solution for simple grinding machines.

  • Tool Change: Manual or Automatic

  • Sleeve diameter: 50-160 mm

  • Speed: max. 24,000 rpm

  • Power: max. 11 kW (S1)

  • Torque: max. Nm (S1)

  • Motor: Asynchronous

  • Tool Interface: GMN external taper

  • Lubrication: Permanent Grease

Please note that the TSEV series for air cooling was discontinued in 2017, but these spindles can be offered for liquid cooling. Contact us for more information.

Request a Quote

Please note that the TSEV series for air cooling was discontinued in 2017, but these spindles can be offered for liquid cooling. Contact us for more information.

Request a Quote

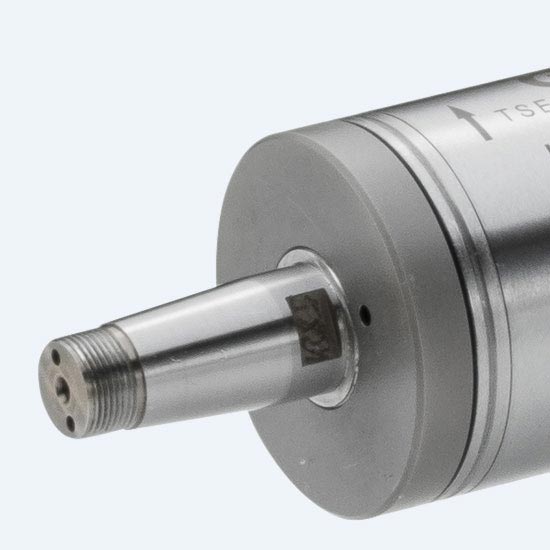

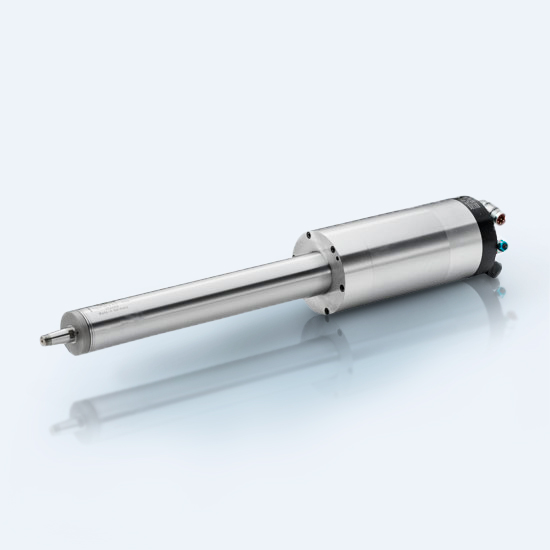

TSE Series

Tool spindles with attached liquid-cooled motors. These spindles offer a high power density and are available with multiple tool interfaces, such as HSK-C, Direct Collet Chuck, or Standard Internal / External Tapers.

  • Tool Change: Manual or Automatic

  • Sleeve diameter: 40-160 mm

  • Speed: max. 45,000 rpm

  • Power: max. 40 kW (S1)

  • Torque: max. 150 Nm (S1)

  • Motor: Asynchronous or Synchronous

  • Tool Interface: GMN standard, HSK-C

  • Lubrication: Oil-Air or Permanent Grease

Request a Quote

TSE Series

Tool spindles with attached liquid-cooled motors. These spindles offer a high power density and are available with multiple tool interfaces, such as HSK-C, Direct Collet Chuck, or Standard Internal / External Tapers.

  • Tool Change: Manual or Automatic

  • Sleeve diameter: 40-160 mm

  • Speed: max. 45,000 rpm

  • Power: max. 40 kW (S1)

  • Torque: max. 150 Nm (S1)

  • Motor: Asynchronous or Synchronous

  • Tool Interface: GMN standard, HSK-C

  • Lubrication: Oil-Air or Permanent Grease
